Integrating with Jenkins(Pipeline)

Jenkins is an open-source automation platform for building, deploying, and automating various projects. It can function as a basic CI server or be expanded into a comprehensive continuous delivery hub. Setting up and configuring Jenkins is straightforward through its web interface.

This document describes how to execute DevAssure tests within a Jenkins pipeline using the DevAssure Command Line Interface (CLI).

Requirements

• A valid DevAssure authentication token.

Creating a new Jenkins Pipeline

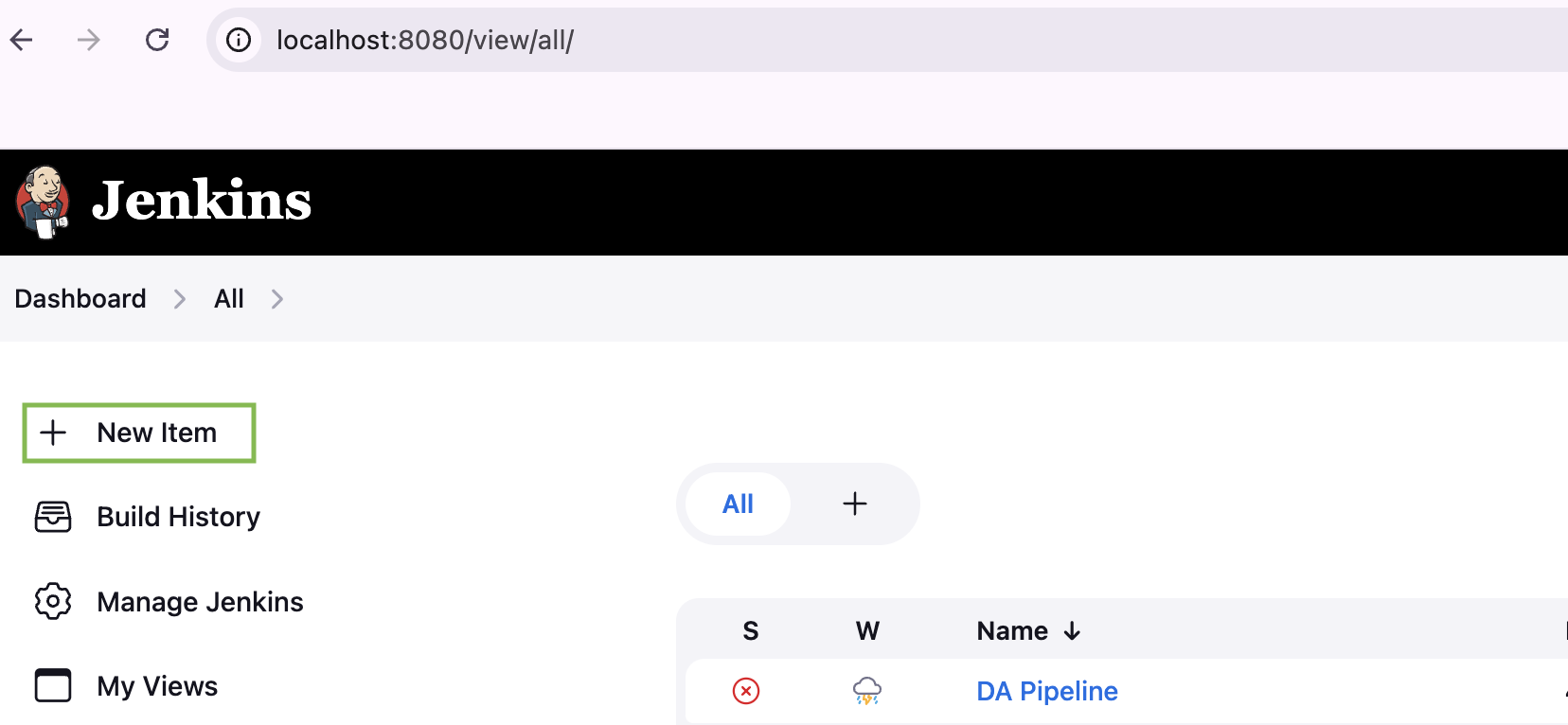

• Log into your Jenkins instance and navigate to the Dashboard Page.
• Click New Item on the left menu in the Dashboard page.

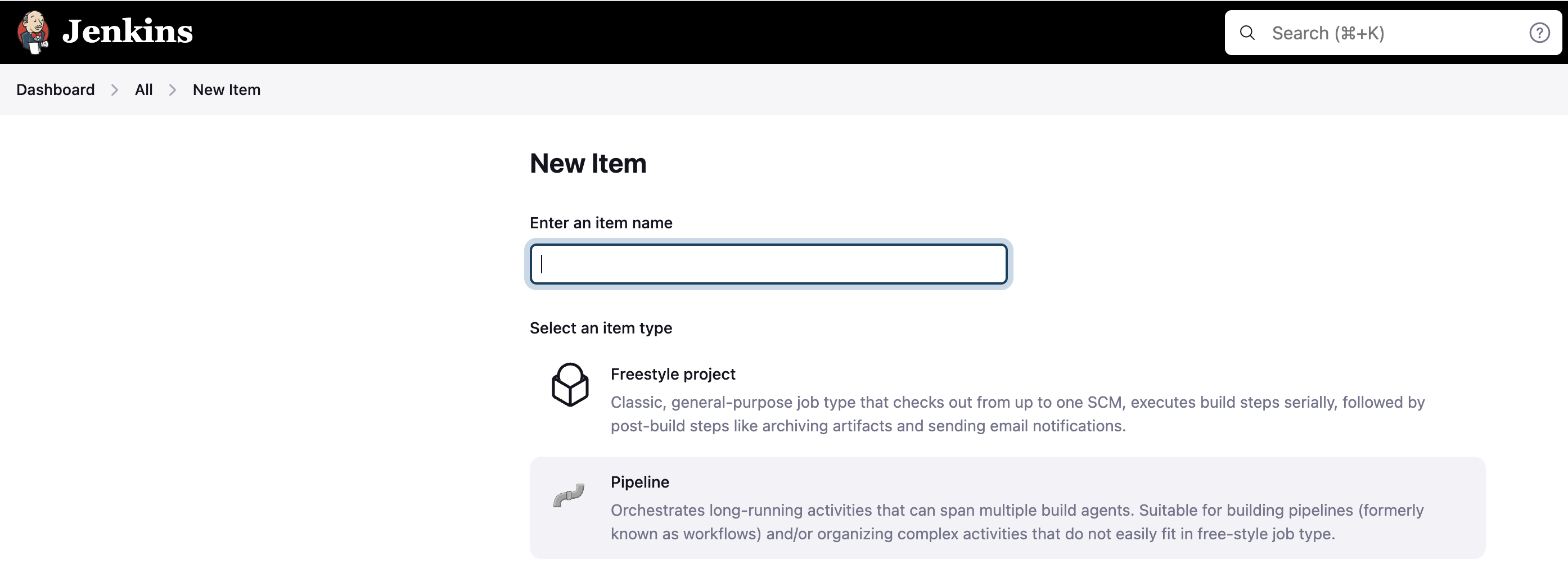

• Enter a name, select 'Pipeline' as the Project type and click on the 'Ok' button to create the Pipeline.

Configuring the Pipeline

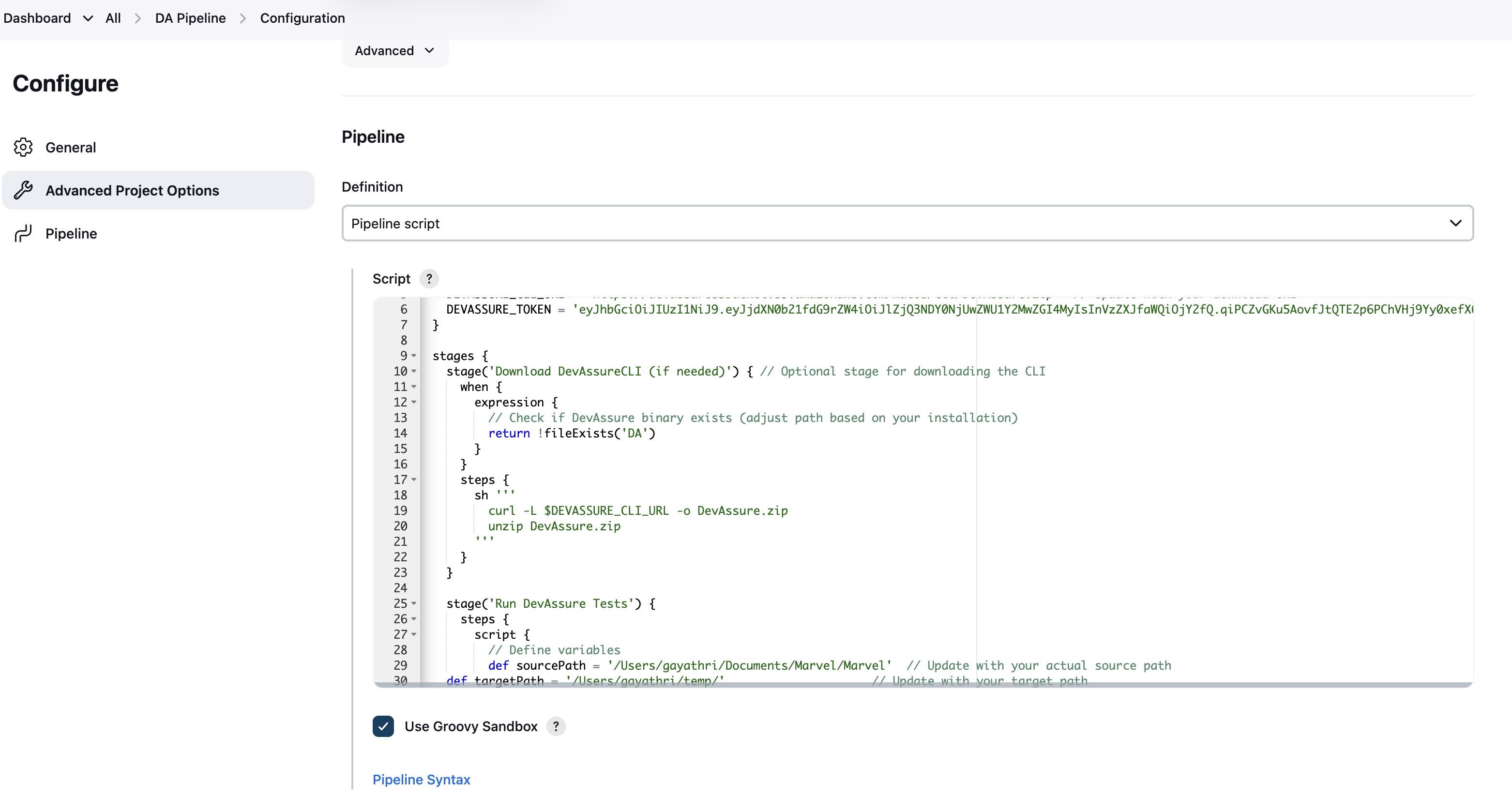

• Scroll down to the Pipeline section and add the script below, for Linux

pipeline {
  agent any

  environment {
    DEVASSURE_CLI_URL = 'https://devassures3bucket.s3.amazonaws.com/linux/cli/DevAssure.zip'  // Update with your download URL
    DEVASSURE_TOKEN = ' Replace with your actual token '
  }

  stages {
    stage('Download DevAssureCLI (if needed)') { // Optional stage for downloading the CLI
      when {
        expression {
          // Check if DevAssure CLI exists (adjust path based on your installation)
          return !fileExists('/path/to/DevAssure')
        }
      }
      steps {
        sh '''
          curl -L $DEVASSURE_CLI_URL -o DevAssure.zip
          unzip DevAssure.zip
        '''
      }
    }

    stage('Run DevAssure Tests') {
      steps {
        script {
          // Define variables
          def sourcePath = '/Users/stark/DevAssure/Marvel'  // Update with your actual source path
          def targetPath = '/Users/stark/temp/'                     // Update with your target path
          def suitePath = '/Users/stark/DevAssure/Marvel/test-suite/P0.suite.tspp' // Update with your test suite path
          def jobName = 'p0_tests'                                          // Update with your desired job name
          def runProfilePath = '/Users/stark/DevAssure/Marvel/run-profile/chrome.profile.tspp' // Update with your run profile path

          sh '''
            ./DA \
              --auth-token $DEVASSURE_TOKEN \
              --source ${sourcePath} \
              --target ${$targetPath} \
              run \
              --suite ${suitePath} \
              --total-nodes 1 \
              --node-id 0 \
              --branch beta \
              --job-name ${jobName} \
              --run-profile ${runProfilePath}
          '''
        }
      }
    }
  }
}

info

We suggest you get help from your Ops team in configuring the Build Pipeline if you are trying it for the first time.

Running the job

• Once you've saved the job configuration, click "Build Now" on the left-hand panel.
• Upon job completion, the script execution details should be visible in the "Console Output" page.
• If the test execution and DevAssure CLI configuration were successful, you should see test results were submitted to your DevAssure instance.
• You can view the reults under the Reports section of your instance in the DevAssure web app.
